中心拉片锥形塞 |
 |
 供应商参考报价：面议 |
|
|
|
| 联系人： |
|
李经理 |
| 所在城市： |
|
江苏省 苏州市 |
| 详细地址： |
|
江苏省苏州市相城区澄阳路26号 |
|
|
|
|
|
|
| 详细信息 |
|
 |

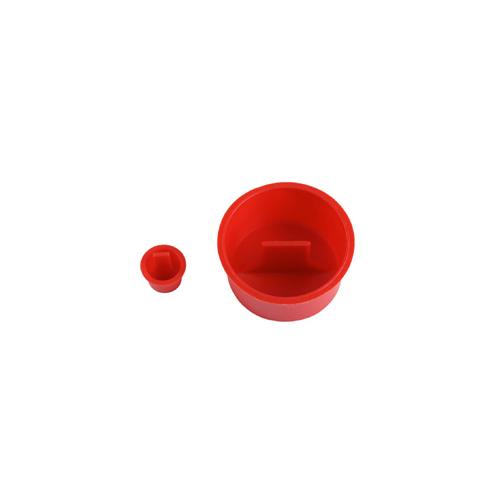

中心拉片锥形塞
红色LDPE
Centre Pull Plugs
中心的拉片易于装配和拆除
提供在存储和运输中防尘, 防潮和防腐保护
|
编号 |
配用螺纹尺寸公制 |
配用螺纹尺寸UNF |
配用螺纹尺寸BSP |
d1(mm) |
d2(mm) |
D(mm) |
h(mm) |
H(mm) |
|
HLPZX001 |
M8 |
5/16" |
- |
6.2 |
7.7 |
11.1 |
9.5 |
20.5 |
|
HLPZX002 |
- |
- |
- |
6.8 |
8.5 |
11.9 |
10.3 |
15.9 |
|
HLPZX003 |
M10 |
7/16" |
1/8" |
8.4 |
10 |
13.5 |
9.5 |
20.5 |
|
HLPZX004 |
- |
3/8" |
- |
9.5 |
10.8 |
14 |
9.5 |
20.5 |
|
HLPZX005 |
- |
- |
- |
9.2 |
10.9 |
15.1 |
9.5 |
19.1 |
|
HLPZX006 |
- |
- |
- |
10.2 |
11.8 |
15.9 |
9.5 |
19.1 |
|
HLPZX007 |
M12 |
1/2" |
1/4" |
10.9 |
12.3 |
15.9 |
9.5 |
20.3 |
|
HLPZX008 |
- |
- |
- |
11.4 |
13 |
16.7 |
10.3 |
14.3 |
|
HLPZX009 |
M14 |
9/16" |
- |
11.7 |
13.7 |
17.2 |
11 |
22 |
|
HLPZX010 |
- |
- |
- |
12.7 |
14.4 |
18.3 |
11.9 |
20.6 |
|
HLPZX011 |
M16 |
5/8" |
3/8" |
14.2 |
16 |
19 |
11.9 |
22.9 |
|
HLPZX012 |
- |
- |
- |
14.7 |
17 |
20.6 |
13.5 |
19.1 |
|
HLPZX013 |
- |
- |
- |
15.5 |
17.7 |
21.3 |
13.5 |
19.8 |
|
HLPZX014 |
M20 |
3/4" |
- |
16.4 |
18.3 |
22.2 |
12.3 |
23.5 |
|
HLPZX015 |
- |
13/16" |
1/2" |
17.8 |
20 |
23.8 |
13.7 |
24.5 |
|
HLPZX016 |
- |
- |
- |
18.5 |
21 |
25.4 |
15 |
21.3 |
|
HLPZX017 |
M24 |
7/8" |
5/8" |
21.3 |
23.2 |
27 |
15.9 |
26.9 |
|
HLPZX018 |
- |
- |
- |
22.1 |
24.7 |
28.5 |
19.1 |
25.4 |
|
HLPZX019 |
- |
1” |
- |
22.5 |
25.5 |
28.9 |
17.8 |
29 |
|
HLPZX020 |
M28,M30 |
11/8" |
- |
24.7 |
27.7 |
32 |
19 |
30 |
|
HLPZX021 |
- |
- |
- |
24.6 |
27.7 |
31.8 |
19.8 |
26.2 |
|
HLPZX022 |
- |
- |
- |
26.1 |
29.1 |
34 |
19.1 |
25.4 |
|
HLPZX023 |
- |
- |
- |
27.8 |
31 |
35.8 |
19.8 |
25.4 |
|
HLPZX024 |
- |
- |
- |
29.2 |
32.7 |
39.4 |
19.1 |
25.4 |
|
HLPZX025 |
- |
- |
- |
32.8 |
33.2 |
38.1 |
19.8 |
25.4 |
|
HLPZX026 |
- |
- |
- |
33.3 |
37.2 |
41.2 |
19.1 |
25.4 |
|
HLPZX027 |
- |
- |
- |
34.1 |
38.8 |
44.5 |
22.4 |
25.4 |
|
HLPZX028 |
- |
- |
- |
36.9 |
40.7 |
44.5 |
19.1 |
25.4 |
|
HLPZX029 |
- |
- |
- |
41 |
44.1 |
48.4 |
18.3 |
28.6 |
|
HLPZX030 |
- |
- |
- |
45.9 |
49.2 |
54.9 |
25.4 |
31.8 |
|
HLPZX031 |
M52 |
- |
- |
48.2 |
52.7 |
57.1 |
25.4 |
26.4 |
|
HLPZX032 |
M58,M60 |
- |
2” |
55 |
61 |
65 |
25 |
26 |
|
HLPZX033 |
M62 |
- |
- |
59.3 |
67.3 |
70.6 |
30.7 |
31.5 |
|
HLPZX034 |
- |
- |
- |
67.4 |
70.2 |
74.6 |
25 |
26 |
|
 |
|
|
|
 |
